TB-ⅡG

TB-ⅡG is an oxygen analyzer whose detective element is made of Zirconia electrolyte for measurement of exhaust gas.

Characteristic

  • 1.Built-in multi filter protection
  • 2.Strong to corrosive gas, long life
  • 3.Direct insert
  • 4.Simple structure, easy maintenance
  • 5.A lot of accessories for each object
  • 6.Long stable measurement

Download catalog

Application example

・Boiler,
・Steel heating
・Incinerator furnace
・Glass fusion furnace
・Ceramic sintering
・furnace
・Waste heat plant
・All burning exhaust gases

TB-ⅡG's

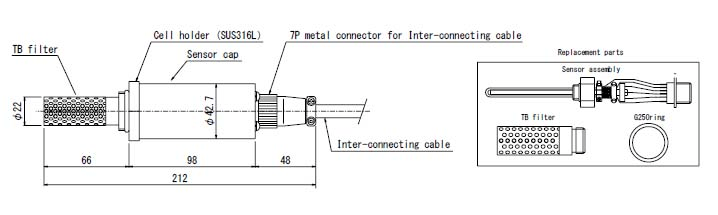

Dimensions

Dimensions

TB-ⅡG's

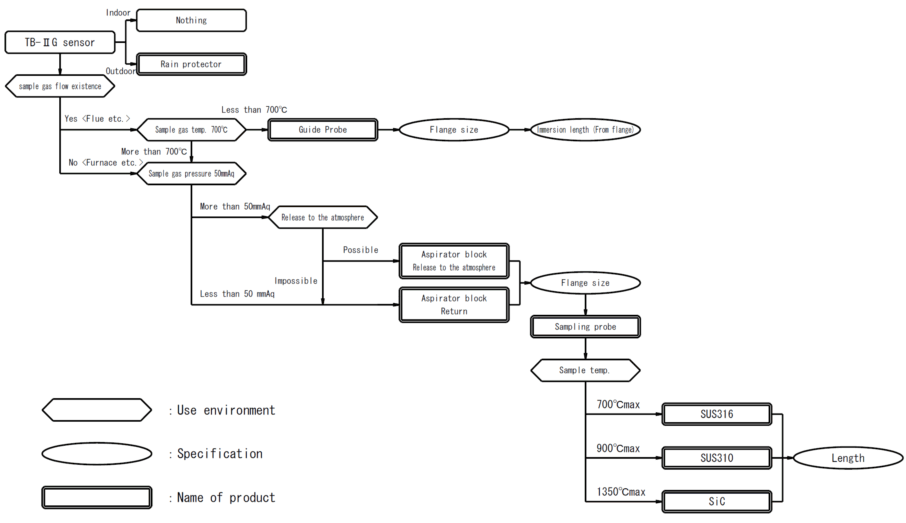

Accessory selection flowchart

flowchart

specification

Measuring Range -20～25%O2
Linearity/Repeatability Less than ±1%FS(0-25%O2)
Response 90% reading 10sec.(Swinging to a high density side)
Drift Less than±2%FS/week
Sample suction With Aspirator block, Guide probe
Sample pressure 0±5KPa(It depends on accessory)
Sample Temp. 300℃ MAX.(Sensor partonly)
0 ～ 700℃(In case of Guide Probe use)
0 ～1350℃(In case of Aspirator Block use)
Warm up time about 20 minutes
Option Rain protector

※It is not possible to make a measurement only by using a sensor.Above control unit is necessary to measure oxygen.
